SanguinoにLCD(SG12864)を接続してみた

最近Arduinoしてるんですが、元祖のDiecimilaはちょっとピン数が少ない。MEGAを使えばいいのだけれどもMEGAは高い。
そんななか、twitterでSanguinoというのを教えてもらったので、ATmega 644PというAVRを使ったSanguinoで色々遊んでみています。

作りたいものがあって、とりあえず液晶を接続してみようということで、接続してみました。
秋月電子のSG12864Aというのが、サイズがそこそこあって良いだろうということで買ってきてあったのですが、さすがArduino、既に接続した先人がいました。SG12864Aは128×64ピクセルのモノクロ液晶で、KS0108というコントローラを使ってみるみたいです。


コントローラのライブラリは、KS0108 Graphics LCD libraryというものです。が、作者さんがGLCD_Library_Beta1_2.zipという新しいバージョンを公開していらっしゃるので、こちらを使った方が良さそうです。

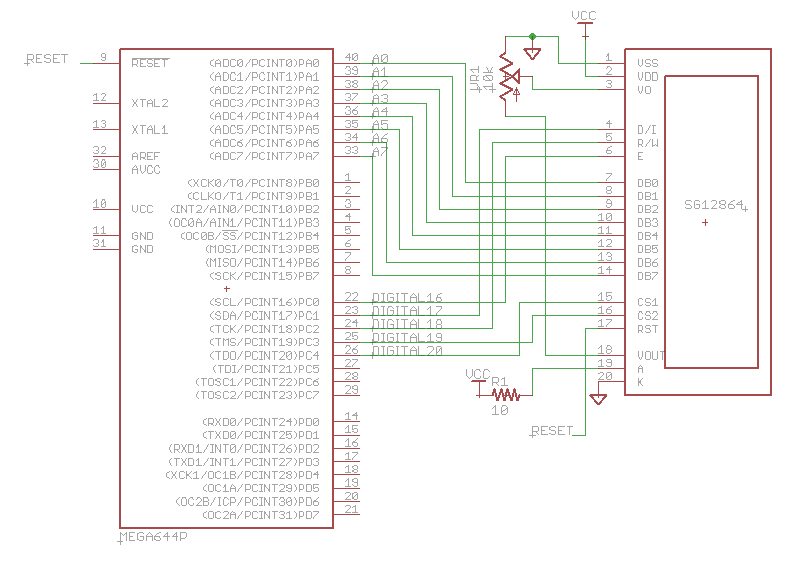

SanguinoとSG12864Aはこんな感じで繋ぎました。

あとは、上記ライブラリのzipを解凍するとks0108というフォルダが出来上がるので、自分のスケッチのフォルダの中にlibrariesフォルダを作って、その中に入れておきました。(Arduino-0017から出来るようになったそうです。)
あとは、ちょっとライブラリのコードを修正しました。(ついでに気になった点も直しました。)

ks0108.h
// Sanguinoは、ATmega644Pのはず。
//#elif defined (__AVR_ATmega644__)  // TODO - check this define
#elif defined (__AVR_ATmega644P__)  // TODO - check this define </code></pre>
ks0108_Sanguino.h
/*******************************************************************************************/
/* Sanguino/ ATmega644 defines                                                             */
/*******************************************************************************************/
// Command pins assignments:
#define CSEL1				20 		// CS1 Bit   // swap pin assignments with CSEL2 if left/right image is reversed
#define CSEL2				19 		// CS2 Bit
#define R_W					18 		// R/W Bit
#define D_I					17 		// D/I Bit
#define EN					16 		// EN Bit
//#define RESET				18 		// EN Bit

//all command pins are on the same port for slight speed & code size improvement
#define LCD_CMD_PORT		PORTC		// Command Output Register for pins 16-23

// data pin assignments- on ATmega644 all data pins are assigned to the same port
//#define dataPins0to7    // bits 0-7 assigned to sanguino pins 0-7
//#define dataPins8to15   // bits 0-7 assigned to sanguino pins 8-15 // note this conflicts with serial UART
//#define dataPins16to23  // bits 0-7 assigned to sanguino pins 16-23
#define dataPins24to31  // bits 0-7 assigned to sanguino pins 24-31

基板も作りかけたのですが、最初、Sanguinoのpinの書き方を間違えていて動かず試行錯誤していたため、ブレッドボードで動作を確認しました。
動作確認に使ったスケッチは、こんな感じです。

SG12864_test.pde
#include &lt;Arial14.h&gt;  // font definitions
#include &lt;SystemFont5x7.h&gt;  // from example
#include &lt;TestPattern.h&gt;
#include &lt;ks0108.h&gt;  // from example
#include &lt;ks0108_Panel.h&gt;

/*
 * GLCDexample
 *
 * Basic test code for the Arduino KS0108 GLCD library.
 * This code exercises a range of graphic functions supported
 * by the library and is an example of its use.
 * It also gives an indication of performance, showing the
 *  number of frames drawn per second.
 */

unsigned long startMillis;
unsigned int loops = 0;
unsigned int iter = 0;

void setup(){
  GLCD.Init(NON_INVERTED);   // initialise the library, non inverted writes pixels onto a clear screen
  GLCD.ClearScreen();
  introScreen();              // show some intro stuff
  GLCD.ClearScreen();
}

void introScreen(){
  GLCD.SelectFont(Arial_14); // you can also make your own fonts, see playground for details
  GLCD.GotoXY(20, 2);
  GLCD.Puts("GLCD  version 1.1");
  GLCD.DrawRoundRect(16,0,99,18, 5, BLACK);  // rounded rectangle around text area

  GLCD.SelectFont(System5x7); // switch to fixed width system font
  showCharacters();

  for(byte count=9; count >0; count--){  // do countdown
     GLCD.CursorTo(0,1);   // first column, seconds row (offset is from 0)
     GLCD.PutChar(count + '0');
     delay(1000);
  }
}

void showCharacters(){
  byte line = 3; // start on the fourth line
  for(byte c = 32; c <=127; c++){
     if( (c-32) % 20 == 0)
         GLCD.CursorTo(1,line++);  // CursorTo is used for fixed width system font
     GLCD.PutChar(c);
  }
}

void drawSpinner(byte pos, byte x, byte y) {
  // this draws an object that appears to spin
  switch(pos % 8) {
  case 0 : GLCD.DrawLine( x, y-8, x, y+8, BLACK); break;
  case 1 : GLCD.DrawLine( x+3, y-7, x-3, y+7, BLACK);  break;
  case 2 : GLCD.DrawLine( x+6, y-6, x-6, y+6, BLACK);  break;
  case 3 : GLCD.DrawLine( x+7, y-3, x-7, y+3, BLACK);  break;
  case 4 : GLCD.DrawLine( x+8, y, x-8, y, BLACK);  break;
  case 5 : GLCD.DrawLine( x+7, y+3, x-7, y-3, BLACK);  break;
  case 6 : GLCD.DrawLine( x+6, y+6, x-6, y-6, BLACK);  break;
  case 7 : GLCD.DrawLine( x+3, y+7, x-3, y-7, BLACK);  break;
  }
}

void  loop(){   // run over and over again
  iter = 0;
  startMillis = millis();
  while( millis() - startMillis < 1000){ // loop for one second
    GLCD.DrawRect(0, 0, 64, 61, BLACK); // rectangle in left side of screen
    GLCD.DrawRoundRect(68, 0, 58, 61, 5, BLACK);  // rounded rectangle around text area
    for(int i=0; i < 62; i += 4)
      GLCD.DrawLine(1,1,63,i, BLACK);  // draw lines from upper left down right side of rectangle
    GLCD.DrawCircle(32,31,30,BLACK);   // draw circle centered in the left side of screen
    GLCD.FillRect(92,40,16,16, WHITE); // clear previous spinner position
    drawSpinner(loops++,100,48);       // draw new spinner position
    //GLCD.FillRect(24,txtLINE3,14,14, WHITE);  // clear text area that will be drawn below
    GLCD.CursorTo(5,5);               // locate curser for printing text
    GLCD.PrintNumber(++iter);         // print current iteration at the current cursor position
  }
  // display number of iterations in one second
  GLCD.ClearScreen();               // clear the screen
  GLCD.CursorTo(14,2);              // positon cursor
  GLCD.Puts("FPS= ");               // print a text string
  GLCD.PrintNumber(iter);           // print a number
}

int main() {
  init();
  setup();
  for(;;)
    loop();
  return 0;
}
