FRISK USBTiny MkII

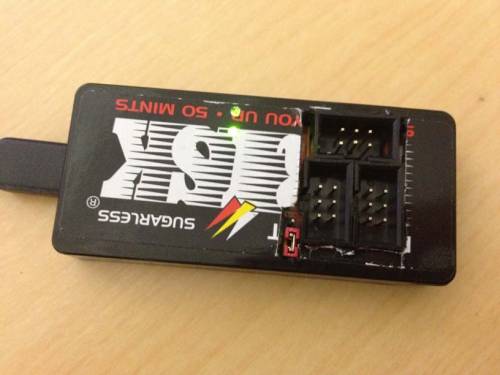

FRISK USBTiny MkII put USBTiny-MkII SLIM, USBTiny-MkII SLIM into FRISK case PCB.
So, this is same as USBTiny-MkII SLIM, AVRISP-MKII clone AVR writer. This could write ATmega, ATtinyand Xmega.

Feartures of FRISK USBTiny MkII is

  1. provide powrt (5V/3.3V) to target
  2. compact!! It's just a FRISK size!!
  3. an OpenSource imprementation with LUFA
  4. could make without AVR writer

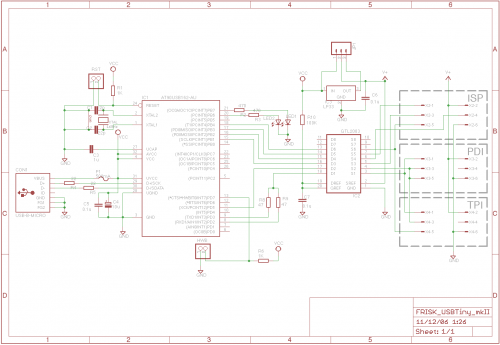

Schematic


Schematic is also same as other USBTiny MkII programmers.
I refered AT90USB162-AU's datasheet and change values of some CRs.

BOM

PartValueDeviceQty
R1,R61KR-EU_M0805(2012)2
R2,R3470R-EU_M0805(2012)2
R4,R522R-EU_M0805(2012)2
R8,R947R-EU_M0805(2012)2
R10100KR-EU_M08051
C1,C233pC-EUC0805(2012)2
C31uC-EUC1206(3216)1
C410uCAPACITOR-POLPANASONIC_C1
C5,C6,C70.1uC-EUC0805(2012)3
CON1USB-B-MICROUSB-B-MICRO1
F1500mAPTCFUSE-12061
IC1AT90USB162-AUAT90USB162-AU1
IC2GTL2003GTL20031
IC3LF33MCP1825S-3302ED1
LED1-LEDCHIP-06031
LED2-LEDCHIP-06031
XTAL16MHzXTAL-4-32251
X2,X3,X4-PINHD-2X03_2.543
HWB,RST-PINHD-1X02_2.541
JP1-PINHD-1X03_2.541


PADs of CRs (exclude C3) are 0805(2012)size. LEDs are 0603(1608) and C3 is 1206(3216).
I made it with 0603 CRs from my partsbox. :-)
C4 is polalized cap and I supposed EEE-1EA100AR (Panasonic). But, I forgot to buy that, so I made it with 1CEC-FS100M(Toshin kogyo).
And I used MCP1825S-3302ED for IC3. But you can choose any pin compat LDOs, such as LF33.

How to build

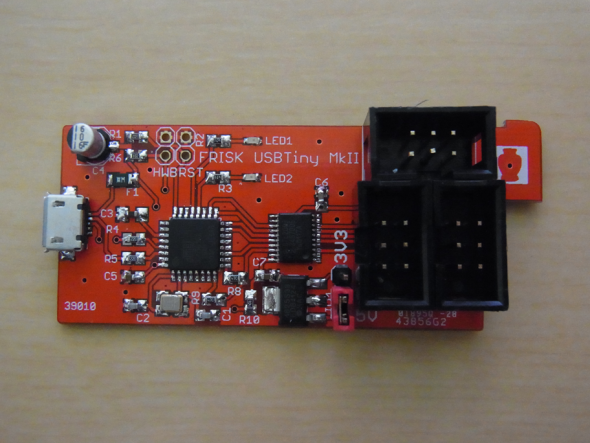

FYI, here is mine.


I'm always using lead-free solder. So, HASL of this PCB is LEAD-FREE. Please use lead-free solder to avoid contamination.

One important information.

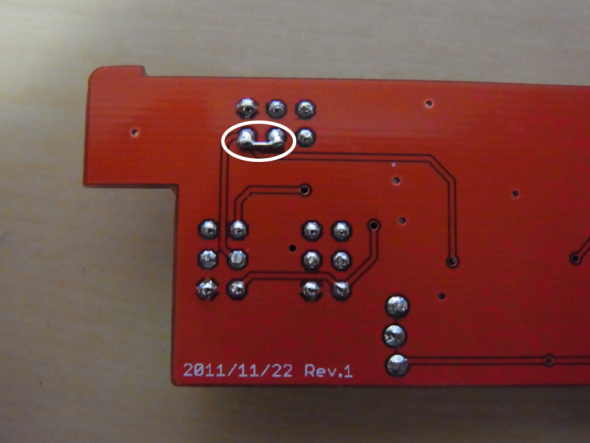

I forgor to connect PDI's pin3 and pin5. So, please jumper that like this photo.


How to flash

After your soldering, you need to write HEX file to AT90USB162 with FLIP. You can download mkii_slim_1.1.rar from USBTiny-MkII SLIMpage.
If you hate Windows, you can write with dfu-programmer on Linux or Mac OS X.
On that archive, you can find two HEX files. One is for avrdude, and other one is for avrstudio. I don't use avrstudio, so I flashed AVRISP-MKII-avrdude.hex.

How to use

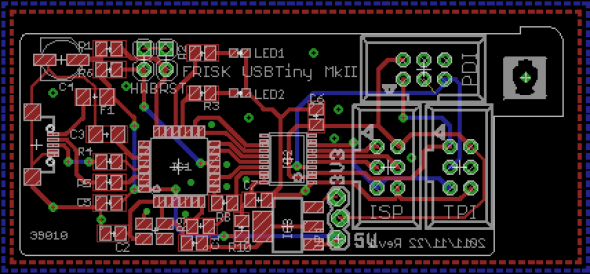

I forgot to change layer of connector silks. So, please refer this Board picture.
You can choose supply voltage to the target, by JP1 next to ISP connector.
Already tested with Arduino 1.0 and avrdude 5.11.1 from MacPorts. In addition, I posted patches for this MacPorts.
